38647 (SBL77R-195/120-277VAC) IN USE (120-277 VAC) LED Sign

Signal-Tech 38647 SBL77R-195/120-277VAC IN USE (120-277 VAC)

Signal-Tech IN USE (120-277 VAC) - 38647 Product Message

Estimated to ship in 1 day.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	38647	Product Line:	SBL (Indoor Blank-out LED Backlit Sign)
Model:	SBL77R-195/120-277VAC	Dimensions:	7" H x 7" W x 2.5" D
Weight:	3.914 lbs.	Faces:	Single Face
Illumination:	SBL LED	Graphic:	Printed
Input Voltage:	120-277 VAC	Color:	Black Blockout
Face Material:	1/8" Dark Grey Diffused Acrylic	Finish:	Duranodic Bronze
UL/cUL Listed:	UL Listed	Flashing:	Not Included
Cabinet:	Combo 2.5"	Warranty:	2 Year Warranty

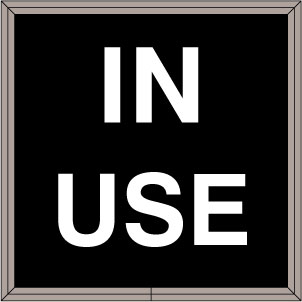

Message Display	Messages	Message Color	Character Height
	IN USE	Red Wide Angle LED	1.75"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 7" x 7" LED signs
Product #: RF77

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

This SBL Series IN USE indoor, blankout, LED backlit sign is designed with a matrix of energy efficient LEDs illuminating a block-style message. The sign features blankout technology that only displays the sign message when illuminated.

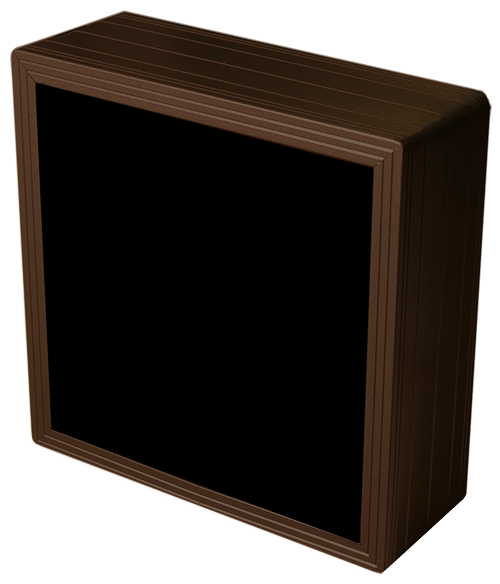

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
