27809 (PHX1418G-121/120-277VAC) ATM LANE (120-277 VAC) LED Sign

Signal-Tech 27809 PHX1418G-121/120-277VAC ATM LANE (120-277 VAC)

Signal-Tech ATM LANE (120-277 VAC) - 27809 Product Message

Estimated to ship in 5 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	27809	Product Line:	PHX (Outdoor Blank-out LED Backlit Sign)
Model:	PHX1418G-121/120-277VAC	Dimensions:	14" H x 18" W x 2.25" D
Weight:	7.702 lbs.	Faces:	Single Face
Graphic:	Printed	Color:	Black Blockout
LED Viewing Angle:	Wide Angle LEDs	Face Material:	1/8" Dark Grey Diffused Acrylic
UL/cUL Listed:	Wet Locations	Finish:	Duranodic Bronze
Illumination:	PHX LED	Mounting Channel:	None
Cabinet:	PHX 2.25"	Input Voltage:	120-277 VAC
Flashing:	Not Included	Warranty:	5 Year Warranty

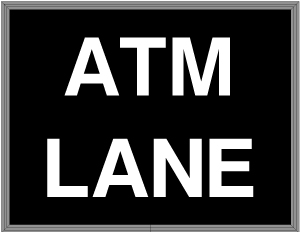

Message Display	Messages	Message Color	Character Height
	ATM LANE	Green Wide Angle LED	3.5"

Installation and Wiring (120-277V)

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 14" x 18" LED signs
Product #: RF1418

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

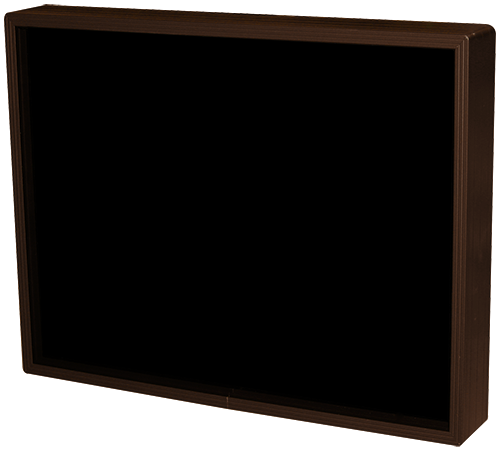

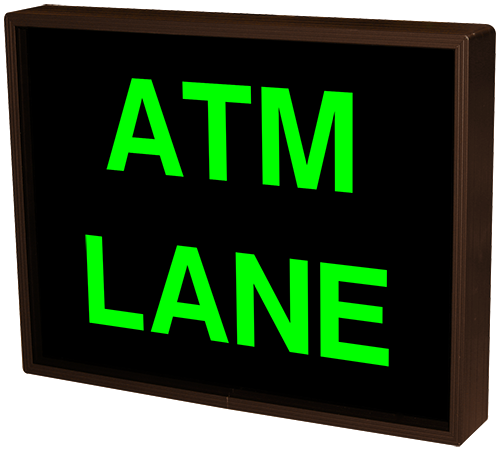

This PHX Series ATM LANE outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
