39006 (PHXF718W-125G/120-277VAC) ATM (120-277 VAC) LED Sign

Signal-Tech 39006 PHXF718W-125G/120-277VAC ATM (120-277 VAC)

Estimated to ship in 5 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	39006	Product Line:	PHXF (Outdoor LED Backlit Sign)
Model:	PHXF718W-125G/120-277VAC	Dimensions:	7" H x 18" W x 2.5" D
Weight:	4.51 lbs.	Faces:	Single Face
Color:	Green Translucent	Graphic:	Printed
LED Viewing Angle:	Wide Angle LEDs	UL/cUL Listed:	Wet Locations
Finish:	Duranodic Bronze	Mounting Channel:	None
Input Voltage:	120-277 VAC	Illumination:	PHXF LED
Flashing:	Not Included	Face Material:	Clear 1/8" Impact Modified Acrylic
Cabinet:	Combo 2.5"	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height

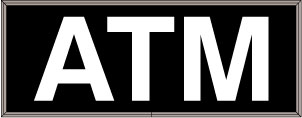

	ATM	Green Translucent, White Wide Angle LED	5.0"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 7" x 18" Signs
Product #: RF718M

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

This PHXF Series ATM outdoor sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message is viewable in daylight conditions when off and can be illuminated at night or in low light conditions to optimize readability.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
