34097 (PHX718DGG-180/120-277VAC) OPEN | OPEN (120-277 VAC) LED Sign

Signal-Tech 34097 PHX718DGG-180/120-277VAC OPEN | OPEN (120-277 VAC)

Signal-Tech OPEN | OPEN (120-277 VAC) - 34097 Product Message

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	34097	Product Line:	PHX (Outdoor Blank-out LED Backlit Sign)
Model:	PHX718DGG-180/120-277VAC	Dimensions:	7" H x 18" W x 5.5" D
Weight:	11.882 lbs.	Faces:	Double Face
Graphic:	Printed	Color:	Black Blockout
LED Viewing Angle:	Wide Angle LEDs	Cabinet:	TCL 550 5.5"
Face Material:	1/8" Dark Grey Diffused Acrylic	UL/cUL Listed:	Wet Locations
Finish:	Duranodic Bronze	Illumination:	PHX LED
Mounting Channel:	None	Input Voltage:	120-277 VAC
Flashing:	Not Included	Warranty:	5 Year Warranty

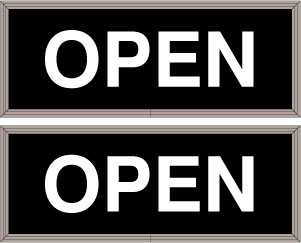

Message Display	Messages	Message Color	Character Height
	OPEN	Green Wide Angle LED	3.3125"
	OPEN	Green Wide Angle LED	3.3125"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Please contact us for mounting recommendations.

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 25925

Product Description

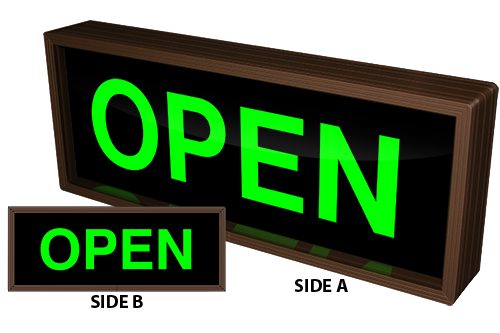

This double-sided PHX Series OPEN | OPEN outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
