57922 (STRI3030W-O772KA/120-277VAC) R10-15R Right Turning Arrow TURNING VEHICLES YIELD TO Pedestrian Symbol (120-277 VAC) LED Sign

Signal-Tech 57922 STRI3030W-O772KA/120-277VAC R10-15R Right Turning Arrow TURNING VEHICLES YIELD TO Pedestrian Symbol (120-277 VAC)

Estimated to ship in 15 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec Sheet

Product #:	57922	Product Line:	STRI (Internally Illuminated LED Traffic Sign)
Model:	STRI3030W-O772KA/120-277VAC	Dimensions:	30" H x 30" W x 6" D
Weight:	54.584 lbs.	Faces:	Single Face
Illumination:	TCL LED	Graphic:	Printed
LED Viewing Angle:	Wide Angle LEDs	UL/cUL Listed:	Wet Locations
Color:	Other	Mounting Channel:	None
Finish:	Black	Flashing:	Not Included
Cabinet:	STR 6"	Face Material:	Clear 1/8" Impact Modified Acrylic
Input Voltage:	120-277 VAC	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height

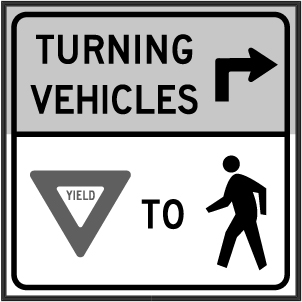

	Right Turning Arrow TURNING VEHICLES YIELD TO Pedestrian Symbol	Black Opaque, Amber Translucent, White Wide Angle LED	5.375", 2.875", 8.625", 11.5"

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 56176

Product #: 56175

Product #: 57944

Product Description

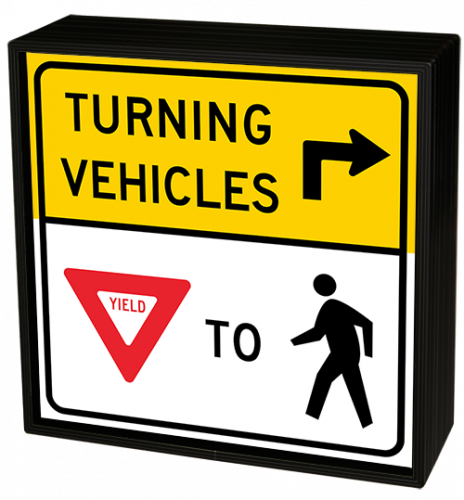

This STR Series R10-15R Right Turning Arrow TURNING VEHICLES YIELD TO Pedestrian Symbol outdoor, highway-grade blank-out sign is designed with a NEMA 3R cabinet, super bright LEDs and a contrasting face; guaranteed readable in direct sunlight. The sign message is formed by strategically placed visible LEDs on a black sign face and is designed to illuminate the message or messages when turned on and blank-out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. It has a corrosion resistant, reinforced all-weather cabinet and a robust back that is ideal for span wire and mast arm mounting. Each sign ships with 0.125" aluminum Lift'N Shift back for wall mounting. Standard cabinet finish is Black; custom paint finishes are available. Sign can be controlled by a switch, Signal-Tech Sign Control Software or third-party relay. Control switch and software can be purchased separately. UL/cUL Listed for wet locations.
