Product #: | 67892 | Product Line: | NUDOT (DOT LED Blank-Out Sign) |
Model: | DOT3838RAW-N408/100-240VAC | Dimensions: | 38" H x 38" W x 6.5" D |
Weight: | 86.506 lbs. | Faces: | Single Face |
Face Material: | 1/8" Smoked Impact Modified Acrylic (5109) | Illumination: | TCL LED |
LED Viewing Angle: | Narrow Angle LEDs | UL/cUL Listed: | Wet Locations |
Finish: | Powdercoat Black | Power Supplies: | No Redundancy |
Cabinet: | NuDOT Single Face 6.5" | Photodimming: | Single Photodimming |
Input Voltage: | 100-240 VAC | Warranty: | 5 Year Warranty |

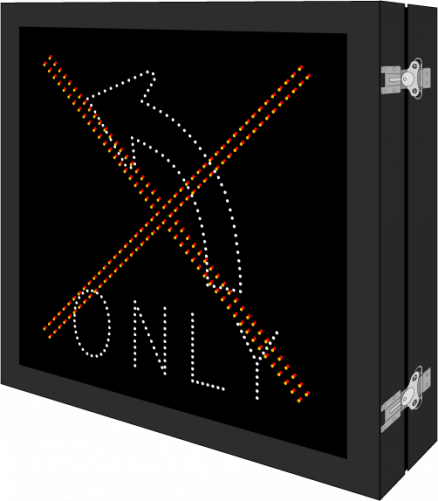

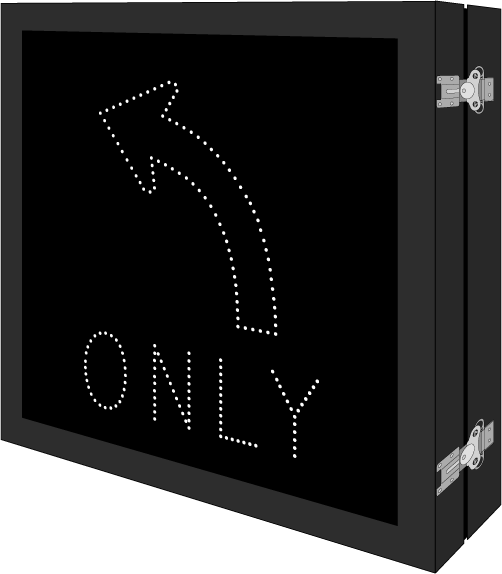

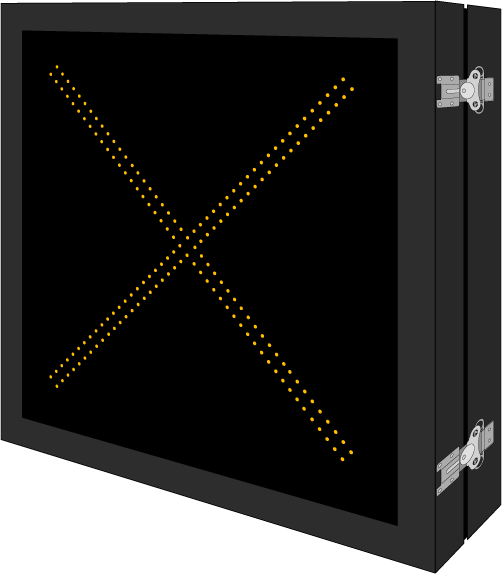

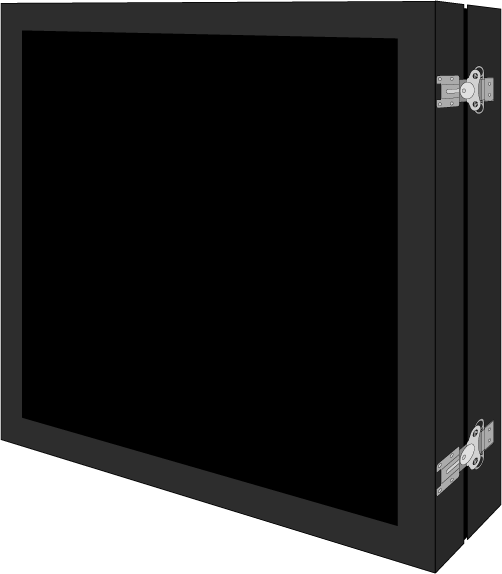

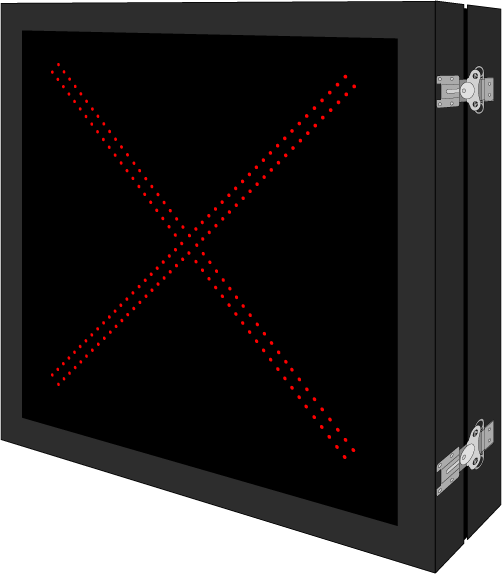

This DOT Series X | X | Veering Left Arrow w/ ONLY sign is a direct-view LED design that illuminates red, amber, or white when activated and blanks out when deactivated. Outside cabinet dimensions are 38.000" x 38.000" x 6.500".
The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.
It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
