68019 (DOT2424A-K006/100-240VAC) Bus Station Symbol (100-240 VAC) LED Sign

Signal-Tech 68019 DOT2424A-K006/100-240VAC Bus Station Symbol (100-240 VAC)

Signal-Tech Bus Station Symbol (100-240 VAC) - 68019 Product Message

Add To Cart Request A Quote View Spec Sheet

Product #:	68019	Product Line:	NUDOT (DOT LED Blank-Out Sign)
Model:	DOT2424A-K006/100-240VAC	Dimensions:	24" H x 24" W x 6.5" D
Weight:	46.794 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
LED Viewing Angle:	Narrow Angle LEDs	UL/cUL Listed:	Wet Locations
Finish:	Powdercoat Black	Power Supplies:	Redundant
Cabinet:	NuDOT Single Face 6.5"	Photodimming:	Single Photodimming
Input Voltage:	100-240 VAC	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height
	Bus Station Symbol	Amber Narrow Angle LED	15.75"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 68304

Product Description

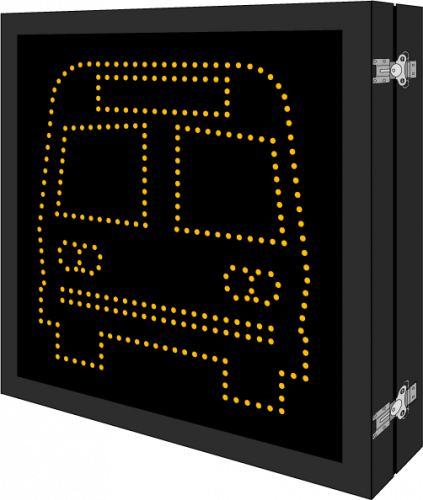

This DOT Series Bus Station Symbol sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 24.000" x 24.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
