56046 (STR3636RG-175/120-277VAC) X | DOWN ARROW (120-277 VAC) LED Sign

Signal-Tech 56046 STR3636RG-175/120-277VAC X | DOWN ARROW (120-277 VAC)

Estimated to ship in 15 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec Sheet

Product #:	56046	Product Line:	STO (Traffic-Grade LED Blank-Out Sign)
Model:	STR3636RG-175/120-277VAC	Dimensions:	36" H x 36" W x 6" D
Weight:	54.6 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
LED Viewing Angle:	Narrow Angle LEDs	UL/cUL Listed:	Wet Locations
Mounting Channel:	None	Finish:	Black
Flashing:	Not Included	Cabinet:	STR 6"
Input Voltage:	120-277 VAC	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height
	X	Red Narrow Angle LED	31.75"
	Down Arrow	Green Narrow Angle LED	31.75"

Single Gang On/Off/On Switch (1-SPDT) (120 VAC) Image

Single Gang On/Off/On Switch (1-SPDT) (120 VAC)
Product #: 3039

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 58825

Product #: 55097

Product Description

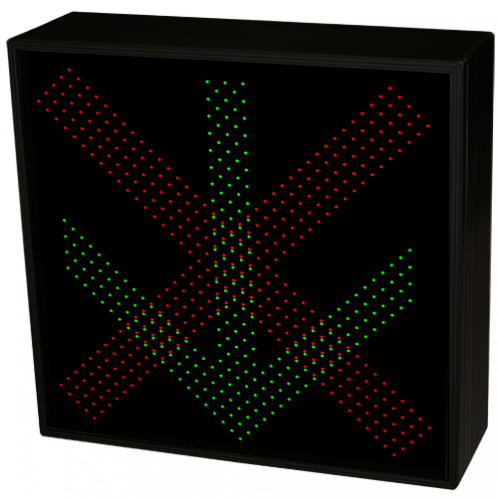

This STR Series X | DOWN ARROW outdoor, highway-grade blank-out sign is designed with a NEMA 3R cabinet, super bright LEDs and a contrasting face; guaranteed readable in direct sunlight. The sign message is formed by strategically placed visible LEDs on a black sign face and is designed to illuminate the message or messages when turned on and blank-out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. It has a corrosion resistant, reinforced all-weather cabinet and a robust back that is ideal for span wire and mast arm mounting. Each sign ships with 0.125" aluminum Lift'N Shift back for wall mounting. Standard cabinet finish is Black; custom paint finishes are available. Sign can be controlled by a switch, Signal-Tech Sign Control Software or third-party relay. Control switch and software can be purchased separately. UL/cUL Listed for wet locations.
