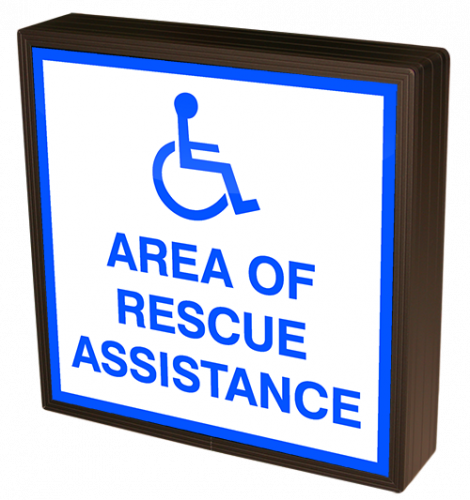

38878 (SBLF1212W-A174B/120-277VAC) AREA OF RESCUE ASSISTANCE (120-277 VAC) LED Sign

Signal-Tech 38878 SBLF1212W-A174B/120-277VAC AREA OF RESCUE ASSISTANCE (120-277 VAC)

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	38878	Product Line:	SBLF (Indoor LED Backlit Sign)
Model:	SBLF1212W-A174B/120-277VAC	Dimensions:	12" H x 12" W x 2.5" D
Weight:	3.004 lbs.	Faces:	Single Face
Color:	Blue Translucent	Graphic:	Printed
Input Voltage:	120-277 VAC	Finish:	Duranodic Bronze
Illumination:	SBLF LED	UL/cUL Listed:	UL Listed
Flashing:	Not Included	Face Material:	Clear 1/8" Impact Modified Acrylic
Cabinet:	Combo 2.5"	Warranty:	2 Year Warranty

Message Display	Messages	Message Color	Character Height
	AREA OF RESCUE ASSITANCE	Blue Translucent	3.75", 1.5"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 12" x 12" LED signs
Product #: RF1212

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

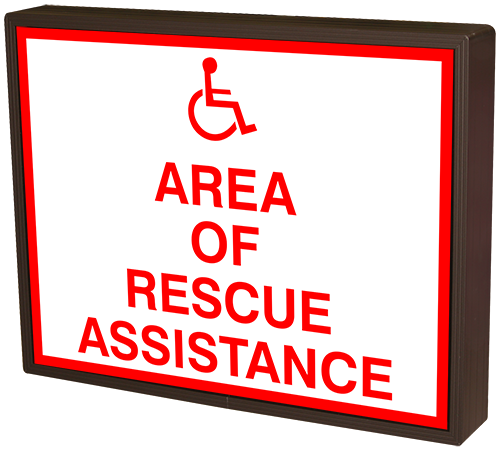

Product #: 38732

Product Description

This SBLF Series AREA OF RESCUE ASSISTANCE indoor, LED backlit sign features a block-style message that is readable without illumination. The message is viewable when off and can be illuminated to add emphasis to the message or to optimize readability in low light conditions.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
