37713 (TCL1418DARAR-A468/12-24VDC) Pedestrian Symbol | Hand Symbol | Pedestrian Symbol | Hand Symbol (12-24 VDC) LED Sign

Signal-Tech 37713 TCL1418DARAR-A468/12-24VDC Pedestrian Symbol | Hand Symbol | Pedestrian Symbol | Hand Symbol (12-24 VDC)

Signal-Tech Pedestrian Symbol | Hand Symbol | Pedestrian Symbol | Hand Symbol (12-24 VDC) - 37713 Product Message

Estimated to ship in 10 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	37713	Product Line:	TCL (Outdoor Blank-out LED Direct-view Sign)
Model:	TCL1418DARAR-A468/12-24VDC	Dimensions:	14" H x 18" W x 5.5" D
Weight:	13.564 lbs.	Faces:	Double Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
Input Voltage:	12-24 VDC	LED Viewing Angle:	Wide Angle LEDs
Cabinet:	TCL 550 5.5"	UL/cUL Listed:	Wet Locations
Finish:	Duranodic Bronze	Mounting Channel:	None
Flashing:	Not Included	Warranty:	5 Year Warranty

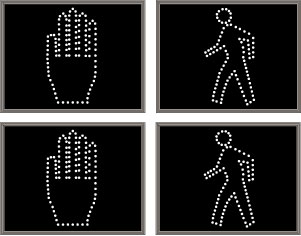

Message Display	Messages	Message Color	Character Height

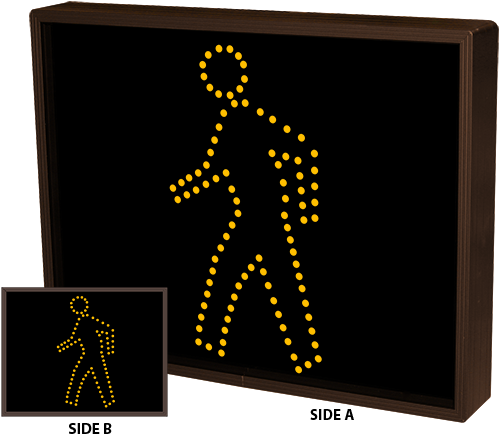

	Pedestrian Symbol	Amber Wide Angle LEDs	11.5"

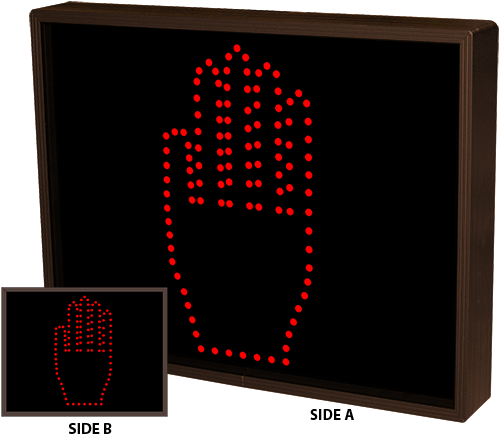

	Hand Symbol	Red Wide Angle LEDs	11.5"
	Pedestrian Symbol	Amber Wide Angle LEDs	11.5"
	Hand Symbol	Red Wide Angle LEDs	11.5"

Installation and Wiring (12-24VDC)Installation and Wiring (12-24VDC) Troubleshooting Your Sign Replacing an old Power Supply (signs before 05/01/16)Replacing a new Power Supply (signs after 05/01/16)

Single Gang On/Off/On Switch (1-SPDT) (120 VAC) Image

Single Gang On/Off/On Switch (1-SPDT) (120 VAC)
Product #: 3039

Please contact us for mounting recommendations.

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 38603

Product Description

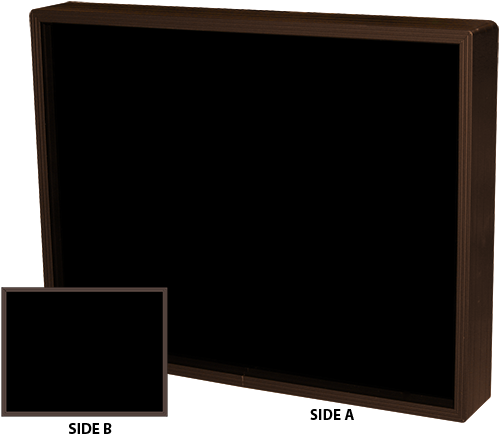

This TCL Series Pedestrian Symbol | Hand Symbol | Pedestrian Symbol | Hand Symbol outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
