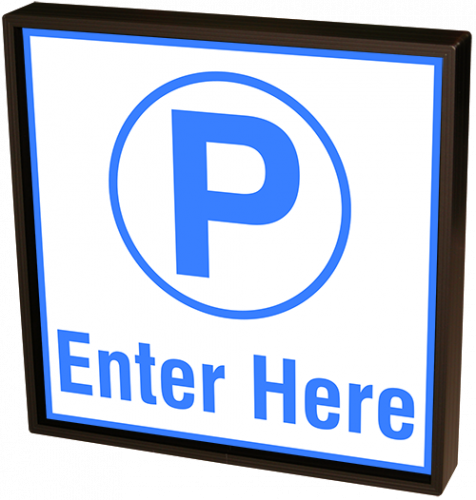

45131 (PHXF1818W-L718B/120-277VAC) Parking P w/Enter Here (120-277 VAC) LED Sign

Signal-Tech 45131 PHXF1818W-L718B/120-277VAC Parking P w/Enter Here (120-277 VAC)

Estimated to ship in 10 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	45131	Product Line:	PHXF (Outdoor LED Backlit Sign)
Model:	PHXF1818W-L718B/120-277VAC	Dimensions:	18" H x 18" W x 2.5" D
Weight:	7.4 lbs.	Faces:	Single Face
Face Material:	Clear Acrylic	Color:	Custom Color Translucent
Graphic:	Printed	LED Viewing Angle:	Wide Angle LEDs
UL/cUL Listed:	Wet Locations	Finish:	Duranodic Bronze
Mounting Channel:	None	Input Voltage:	120-277 VAC
Illumination:	PHXF LED	Flashing:	Not Included
Cabinet:	Combo 2.5"	Warranty:	5 Year Warranty

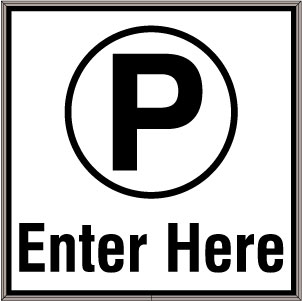

Message Display	Messages	Message Color	Character Height
	Parking P w/Enter Here	Blue Translucent	8.5", 3.0"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 18" x 18" LED signs
Product #: RF1818

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

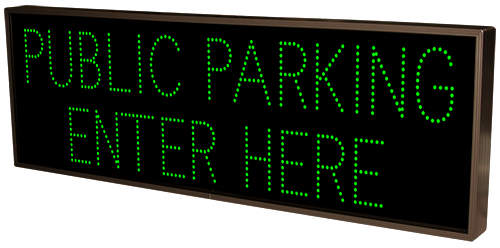

Product #: 27098

Product #: 39322

Product Description

This PHXF Series Parking P w/Enter Here outdoor sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message is viewable in daylight conditions when off and can be illuminated at night or in low light conditions to optimize readability.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
