15120 (TCL1418RA-A127/120-277VAC) DO NOT ENTER w/Do Not Enter Symbols (120-277 VAC) LED Sign

Signal-Tech 15120 TCL1418RA-A127/120-277VAC DO NOT ENTER w/Do Not Enter Symbols (120-277 VAC)

Signal-Tech DO NOT ENTER w/Do Not Enter Symbols (120-277 VAC) - 15120 Product Message

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	15120	Product Line:	TCL (Outdoor Blank-out LED Direct-view Sign)
Model:	TCL1418RA-A127/120-277VAC	Dimensions:	14" H x 18" W x 2.5" D
Weight:	6.812 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
LED Viewing Angle:	Wide Angle LEDs	Input Voltage:	120-277 VAC
UL/cUL Listed:	Wet Locations	Finish:	Duranodic Bronze
Mounting Channel:	None	Flashing:	Not Included
Cabinet:	Combo 2.5"	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height
	DO NOT ENTER w/Do Not Enter Symbol	Red, Amber Wide Angle LED	2.0", 10.0"

Installation and Wiring (120-277V)Installation and Wiring (120-277V) Troubleshooting Your Sign Replacing an old Power Supply (signs before 05/01/16)Replacing a new Power Supply (signs after 05/01/16)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 14" x 18" LED signs
Product #: RF1418

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 6263

Product #: 25932

Product Description

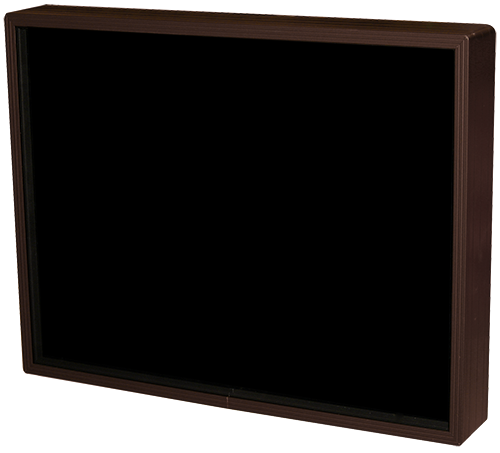

This TCL Series DO NOT ENTER w/Do Not Enter Symbols (120-277VAC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
