52172 (TCILV-AA/120-277VAC) LED Traffic Controller - Vertical, Amber-Amber (120-277 VAC) LED Sign

Signal-Tech 52172 TCILV-AA/120-277VAC LED Traffic Controller - Vertical, Amber-Amber (120-277 VAC)

Signal-Tech LED Traffic Controller - Vertical, Amber-Amber (120-277 VAC) - 52172 Product Message

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	52172	Product Line:	TCIL (LED Traffic Controller)
Model:	TCILV-AA/120-277VAC	Dimensions:	14" H x 7" W x 6" D
Weight:	3.009 lbs.	Faces:	Single Face
Lens: Left or Top:	Amber	Lens: Right or Bottom:	Amber
LED Viewing Angle:	Wide Angle LEDs	Input Voltage:	120-277 VAC
UL/cUL Listed:	Wet Locations	Finish:	Duranodic Bronze
Cabinet:	Molded Housing	Illumination:	TCIL LED
Flashing:	Not Included	Warranty:	5 Year Warranty

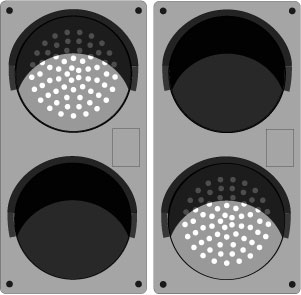

Message Display	Messages	Message Color	Character Height
	Amber Indicator Dot	Amber Wide Angle LED	4.0"
	Amber Indicator Dot	Amber Wide Angle LED	4.0"

Installation and Wiring (120-277V)

Single Gang On/Off/On Switch (1-SPDT) (120 VAC) Image

Single Gang On/Off/On Switch (1-SPDT) (120 VAC)
Product #: 3039

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame for TCIL Traffic Controller, use for vertical or horizontal orientation
Product #: RFI

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

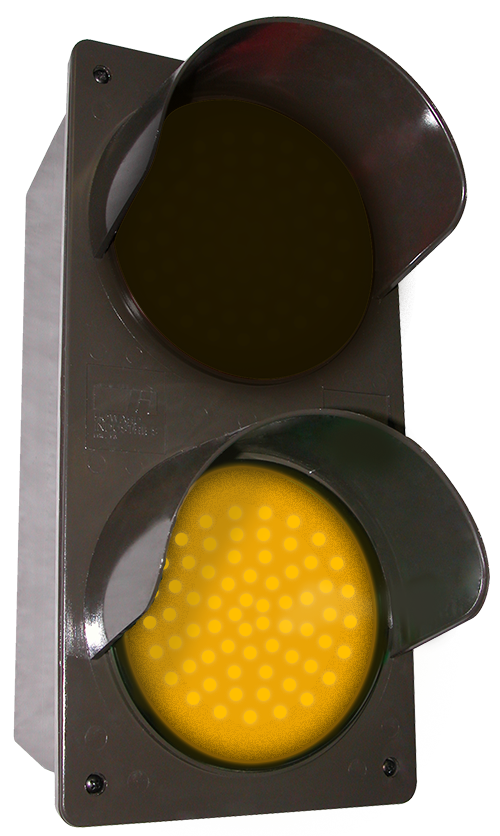

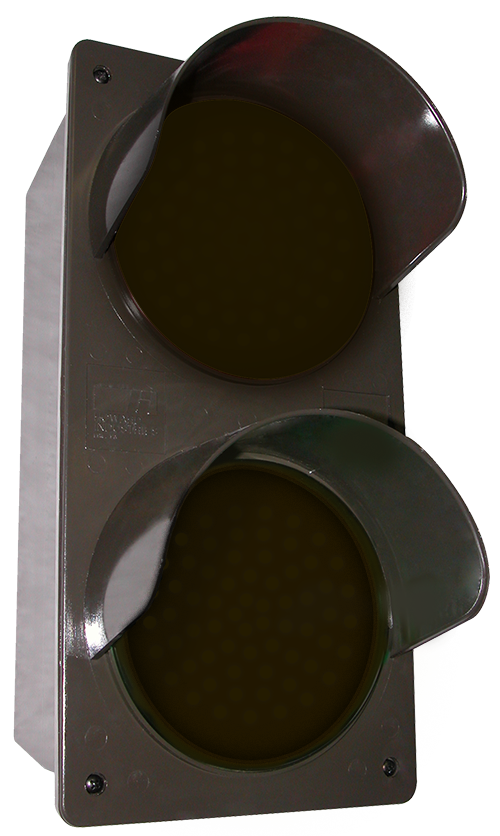

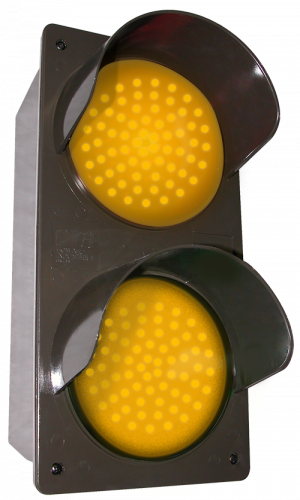

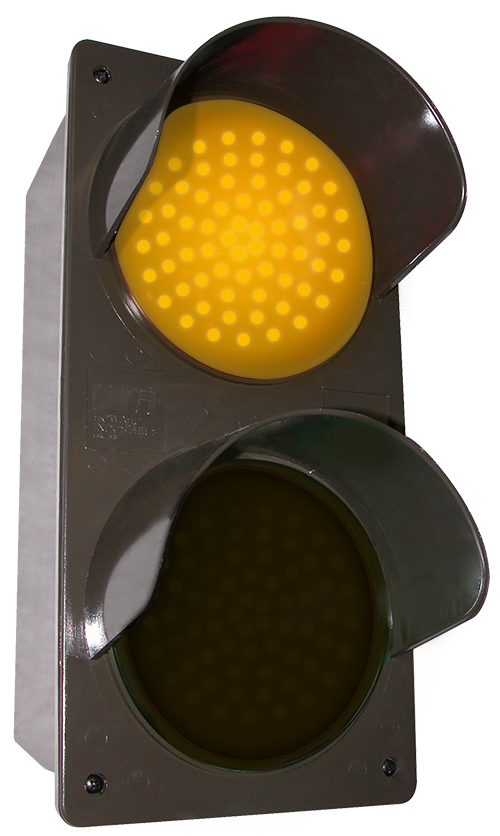

TCIL Series LED Traffic Controller, vertical. Features super bright, direct-view LEDs on a replaceable circuit board. Controller housing and hood construction is injection molded, impact resistant polycarbonate. Also includes two tinted lens covers.

Standard housing and hood finish is Duranodic Bronze; custom paint finishes are available. Input voltage 120-277VAC. UL/cUL Listed for wet locations. Housing can be used for surface mounting. Ceiling, post and wall-projection mountings are also available. Traffic Controller can be controlled by a switch or third-party relay. Switch is available separately.
