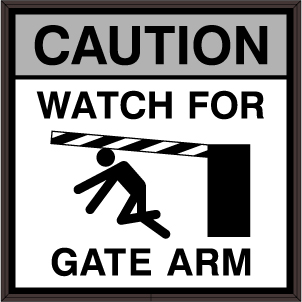

57156 (PHXF1212W-O521YK/12-24VDC) CAUTION WATCH FOR GATE ARM w/ Gate Hazard Symbol (12-24 VDC) LED Sign

Signal-Tech 57156 PHXF1212W-O521YK/12-24VDC CAUTION WATCH FOR GATE ARM w/ Gate Hazard Symbol (12-24 VDC)

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	57156	Product Line:	PHXF (Outdoor LED Backlit Sign)
Model:	PHXF1212W-O521YK/12-24VDC	Dimensions:	12" H x 12" W x 2.5" D
Weight:	15.455 lbs.	Faces:	Single Face
Color:	Custom Color Translucent	Graphic:	Printed
LED Viewing Angle:	Wide Angle LEDs	UL/cUL Listed:	Wet Locations
Finish:	Duranodic Bronze	Mounting Channel:	None
Illumination:	PHXF LED	Flashing:	Not Included
Input Voltage:	12-24 VDC	Face Material:	Clear 1/8" Impact Modified Acrylic
Cabinet:	Combo 2.5"	Warranty:	5 Year Warranty

Message Display	Messages	Message Color	Character Height
	CAUTION WATCH FOR GATE ARM w/ Gate Hazard Symbol	Yellow Translucent, Black Opaque, White Wide Angle LED	1.5", 1.25", 4.25"

Installation and Wiring (12-24VDC)

Single Gang Switch (1-SPST) (12 VDC) Image

Single Gang Switch (1-SPST) (12 VDC)
Product #: 33203

Single Gang Switch (1-SPST) (24 VDC) Image

Single Gang Switch (1-SPST) (24 VDC)
Product #: 17290

Lift 'N Shift Standard Wall Mount
Product #: Standard Wall Mount

Recessed Frame Mount for use on 12" x 12" LED signs
Product #: RF1212

Ceiling/Side Mount Bracket for 2.25" - 3" Deep Signs (1 pair)
Product #: UNI-TCL-PHX-SBL

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

This PHXF Series CAUTION WATCH FOR GATE ARM w/ Gate Hazard Symbol outdoor sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message is viewable in daylight conditions when off and can be illuminated at night or in low light conditions to optimize readability.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded all-weather frame and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
