Products  >  Rail  >  Light Rail and Pedestrian Warning  >  67738 (DOT2929RW-D756/9-24VDC) ! DANGER ! | ANOTHER TRAIN COMING (9-24 VDC) LED Sign

67738 (DOT2929RW-D756/9-24VDC) ! DANGER ! | ANOTHER TRAIN COMING (9-24 VDC) LED Sign

Add To CartRequest A QuoteView Spec Sheet
Product #: 67738 Product Line: NUDOT (DOT LED Blank-Out Sign)
Model: DOT2929RW-D756/9-24VDC Dimensions: 29" H x 29" W x 6.5" D
Weight: 56.734 lbs. Faces:Single Face
Face Material:1/8" Smoked Impact Modified Acrylic (5109)Illumination:TCL LED
LED Viewing Angle:Narrow Angle LEDsUL/cUL Listed:Wet Locations
Finish:Powdercoat BlackPower Supplies:No Redundancy
Cabinet:NuDOT Single Face 6.5"Photodimming:Single Photodimming
Input Voltage:9-24 VDC Warranty: 5 Year Warranty

Other Signs Available


Product Description

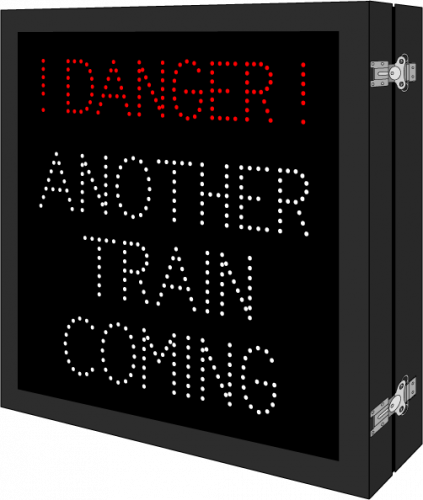

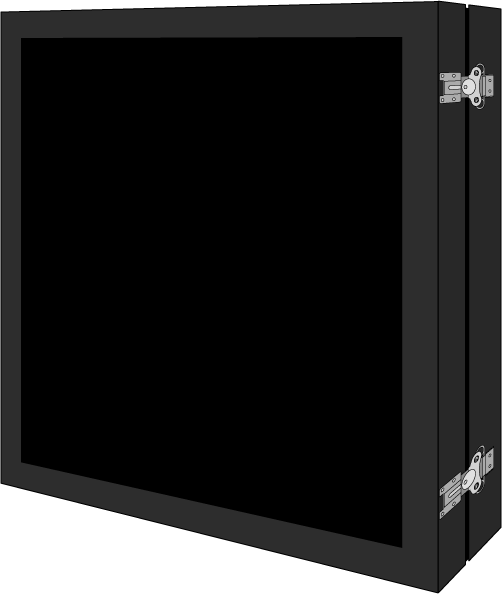

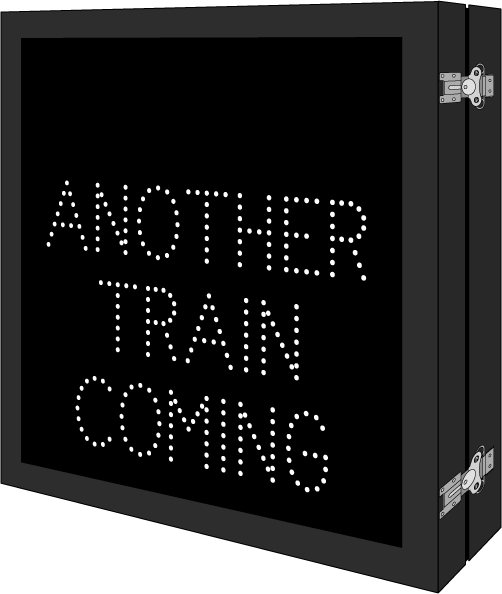

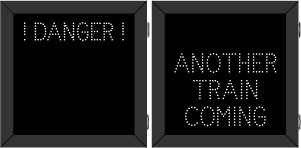

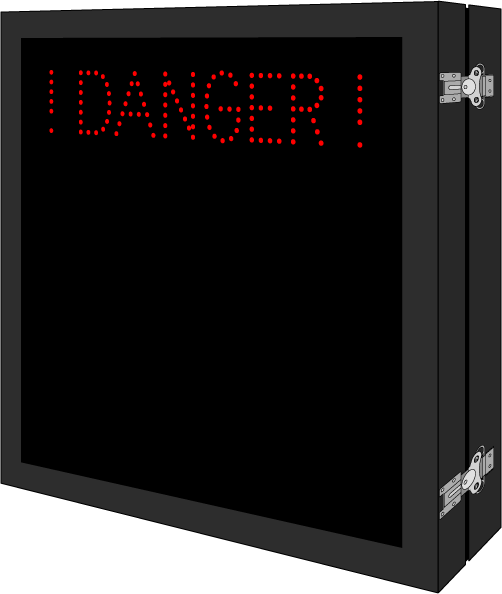

This DOT Series ! DANGER ! | ANOTHER TRAIN COMING sign is a direct-view LED design that illuminates red and white when activated and blanks out when deactivated. Outside cabinet dimensions are 29.000" x 29.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
