21634 (MAP120B12) Mast Arm Post Mount with Base Plate

Estimated to ship in 15 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec Sheet

Product #:	21634	Product Line:	MAP (Mast Arm Post)
Model:	MAP120B12	Dimensions:	120" H x 108" W x 12" D
Weight:	65.12 lbs.	Finish:	Duranodic Bronze
Warranty:	1 Year Warranty

1 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

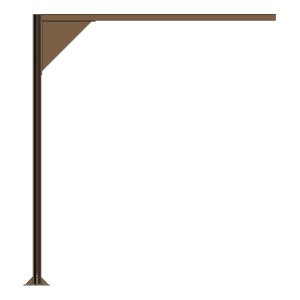

The Mast Arm Post mount is constructed using two individual posts that intersect at 90 degrees. The upright is a 4" x 4" extruded aluminum posts with 12" x 12" welded base plate. Base plate is a 3/8" thick aluminum plate with predrilled anchoring holes and 4 - 4" high welded gussets. The horizontal is a 2.25" x 3" post. The upright and horizontal posts are secured using a structural gusset that is an 18"h x 18"w x 3/8"d aluminum plate. Finish is Duranodic Bronze, unless otherwise noted. For use with a single Clearance I-Bar up to 6ft long only.
