Products  >  38866 (SBLF77W-A231R/120-277VAC) BEAM ON (120-277 VAC)

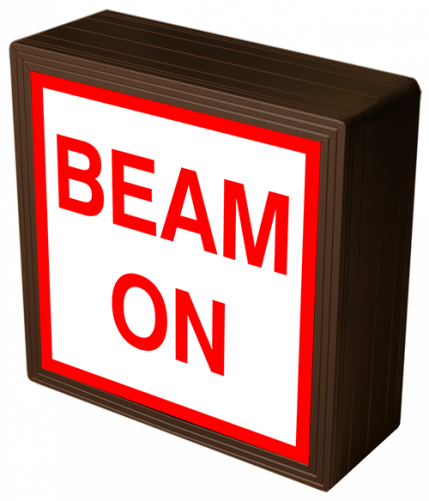

38866 (SBLF77W-A231R/120-277VAC) BEAM ON (120-277 VAC)

Signal-Tech 38866 SBLF77W-A231R/120-277VAC BEAM ON (120-277 VAC)
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
Product #: 38866 Product Line: SBLF (Indoor LED Backlit Sign)
Model: SBLF77W-A231R/120-277VAC Dimensions: 7" H x 7" W x 2.5" D
Weight: 2.593 lbs. Faces:Single Face
Color:Red TranslucentGraphic:Printed
Input Voltage:120-277 VACFinish:Duranodic Bronze
Illumination:SBLF LEDUL/cUL Listed:UL Listed
Flashing:Not IncludedFace Material:Clear 1/8" Impact Modified Acrylic
Cabinet:Combo 2.5" Warranty: 2 Year Warranty
Message Display Messages Message Color Character Height
BEAM ON ImageBEAM ON Red Translucent, White Wide Angle LED 1.5"

2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

This SBLF Series BEAM ON indoor, LED backlit sign features a block-style message that is readable without illumination. The message is viewable when off and can be illuminated to add emphasis to the message or to optimize readability in low light conditions.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
