Products  >  68245 (DOT2929RW-B360DS/100-240VAC) STOP w/ Octagon (100-240 VAC)

68245 (DOT2929RW-B360DS/100-240VAC) STOP w/ Octagon (100-240 VAC)

Estimated to ship in 15 days.
Lead times subject to change based on quantity.
Add To CartRequest A QuoteView Spec Sheet
Product #: 68245 Product Line: NUDOT (DOT LED Blank-Out Sign)
Model: DOT2929RW-B360DS/100-240VAC Dimensions: 29" H x 29" W x 6.5" D
Weight: 58.393 lbs. Faces:Single Face
Face Material:1/8" Smoked Impact Modified Acrylic (5109)Illumination:TCL LED
LED Viewing Angle:Narrow Angle LEDsUL/cUL Listed:Wet Locations
Finish:Powdercoat BlackPower Supplies:No Redundancy
Cabinet:NuDOT Single Face 6.5"Photodimming:Single Photodimming
Input Voltage:100-240 VAC Warranty: 5 Year Warranty

Product Description

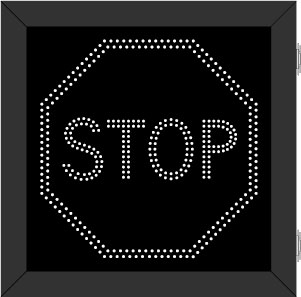

This DOT Series STOP w/ Octogon sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 29.000" x 29.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

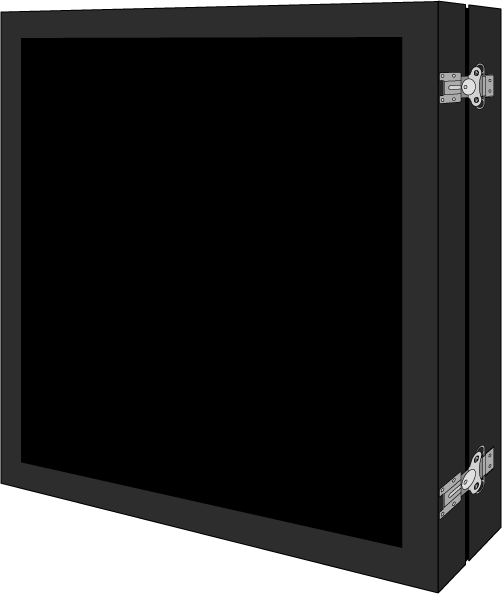

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
