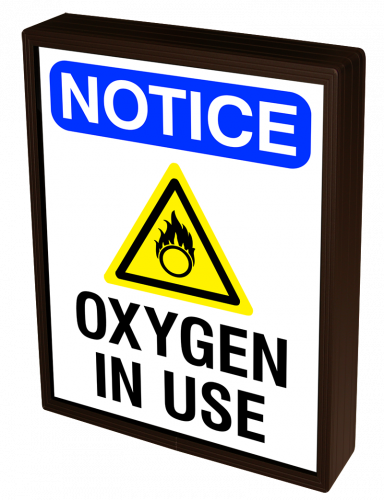

59723 (SBLF118W-P226BYK/120-277VAC) NOTICE OXYGEN IN USE w/ Oxygen hazard symbol (120-277 VAC) LED Sign

Signal-Tech 59723 SBLF118W-P226BYK/120-277VAC NOTICE OXYGEN IN USE w/ Oxygen hazard symbol (120-277 VAC)

Add To Cart Request A Quote View Spec SheetLooking to change the frame color? Click here to see what colors are available.

Product #:	59723	Product Line:	SBLF (Indoor LED Backlit Sign)
Model:	SBLF118W-P226BYK/120-277VAC	Dimensions:	11" H x 8" W x 2.5" D
Weight:	3.54 lbs.	Faces:	Single Face
Graphic:	Printed	Input Voltage:	120-277 VAC
Finish:	Duranodic Bronze	Illumination:	SBLF LED
Color:	Other	UL/cUL Listed:	UL Listed
Flashing:	Not Included	Face Material:	Clear 1/8" Impact Modified Acrylic
Cabinet:	Combo 2.5"	Warranty:	2 Year Warranty

Message Display	Messages	Message Color	Character Height
	NOTICE OXYGEN IN USE w/ Oxygen hazard symbol	Blue Translucent, Yellow Translucent, Black Opaque, White Wide Angle LED, White Wide Angle LED	1.75", 1.375", 3.0"

Installation and Wiring (120-277V)

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 59725

Product #: 59716

Product #: 59714

Product Description

This SBLF Series NOTICE OXYGEN IN USE w/ Oxygen hazard symbol indoor, LED backlit sign features a block-style message that is readable without illumination. The message is viewable when off and can be illuminated to add emphasis to the message or to optimize readability in low light conditions.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded all-weather frame and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
